Product Usage:

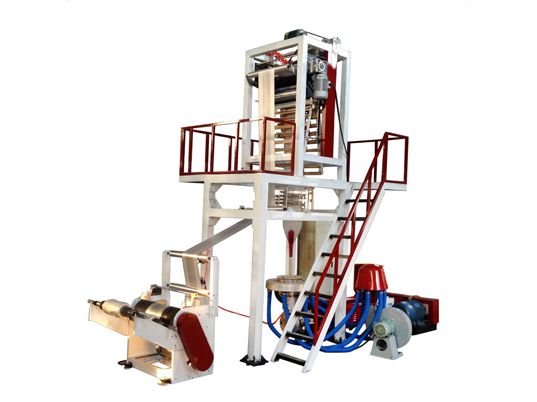

The machine body is mode of square steel,with frequency converter controlled traction,friction single winder and elevator,which is suitable for blowing HDPE/LDPE industrial and agriculture film and packing bags for foodstuff, clothing, rubbish bag,vest bags and etc.
Main Technical Parameters:
| Model | HT-SJ50/FM600 | HT-SJ55/FM800 | HT-SJ60/FM1000 | HT-SJ65/FM1200 | HT-SJ75/FM1500 |
| Screw diameter | 50mm | 55mm | 60mm | 65mm | 75mm |
| Screw ratio(L/D) | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
| Screw speed | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Max.output | 30kg/hr | 40kg/hr | 60kg/hr | 70kg/hr | 90kg/hr |
| Film width | 600mm | 800mm | 1000mm | 1200mm | 1500mm |
| Single film thickness | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm |
| Main motor | 11kw | 15kw | 18.5kw | 22kw | 30kw |
| Total power | 22kw | 26kw | 30kw | 40kw | 50kw |
| Weight | 2600kg | 3000kg | 3600kg | 4200kg | 5000kg |
| Dimension | 4*1.8*4m | 4.2*2.0*4.2m | 4.6*2.8*4.5m | 4.8*3.0*5.6m | 4.8*3.0*5.6m |
