ZBJ-GH990 High Speed Paper Cup Machine
Time：2021/04/27
ZBJ-GH990 High Speed Paper Cup Machine
Name
| High Speed Paper Cup Machine |
| Model | ZBJ-GH990 High Speed Paper Cup Machine |
| Raw Material | One-side or two side (polyethylene)film coated/laminated paper; |
| Rate Speed | 120-150 cups/m (small size, light paper, bigger size) |
| CUP COLLECTION | INCLUDING |
| Suitable paper weight: | 190-350gsm Single or double PE coated paper |
| Paper Cup Size: | 3-42oz |
| Total Weight: | 5000KG
|
| Power Source: | 50Hz, (220V single phase, 380V 3-phase, 50Hz), (Better use 380V 3-phase) * if User power different? Please INFO US IN ADVANCE. |
| Total Power: | 21kw
|
| Running Power | 18kw |
| Pack Size (L*W*H) | 2900 x 1380 x 1800 mm |
| Working Air Source: | Air pressure:0.4Mpa; Air Out-put:0.6m³/minute User should BUY Air Compressor |
| Cup Side Welding: | Ultrasonic
|
| Cup Bottom Heating | Hot Air (Extra Need Air compressor supply air) |
| Cup Bottom Knurling: | Heater Knurling (if use single PE coated paper)
|
| Cool Device (circle water) knurling, for double PE coated paper |

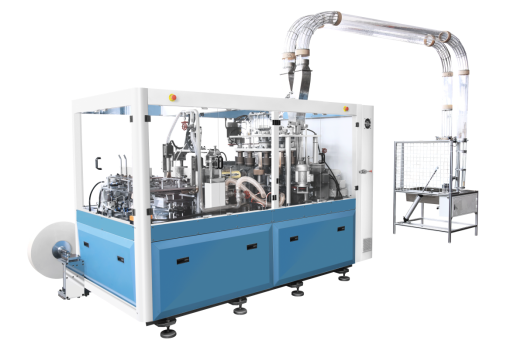

Description: New Model ZBJ-GH990 Paper cup machine is an ideal paper cup making equipment, which is our new independent research and development machine with comprehensive technical improvement.
ZBJ-GH990 has the PLC touch screen system it is easy operate. It makes both one-side and two-side PE-film-coated paper cups after running a whole procedure of automatic Multi-step pre-printed-cup-fan-paper Feeding (Multi-step paper-feed and Anti-back device to keep the accurate position), cup-body-side welding(ultrasonic wave), robot transfer cup body, silicone-oil lubricating(for top curling), bottom-disk punching, bottom pre-heating and pre-folding, main heating, bottom knurling(cool device for 2PE), top curling, cup discharging and collecting.

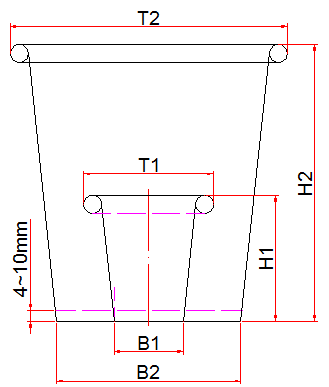

| Machine model | Top dia. | Bottom dia. | Height |
|
ZBJ-GH990
| 40~125 | 30-115 | 40-136 |
| UNIT: mm Bottom Knurling Depth: Min 4mm ~ Max 10mm (popular 5mm, 6mm, 8mm) Top Curling Rim Diameter: Popular about Φ2.5 ~ Φ3 |
