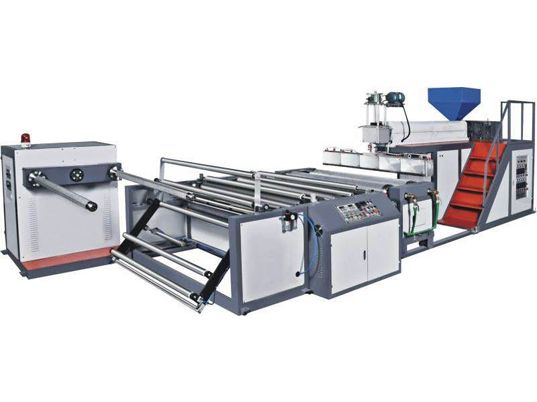

Polyethylene Bubble Film Making Machine
Time:2021/04/27


Performance and Characteristics:
 (Polyethylene) Air Bubble Film Making Machine adopts once-through shaping technique,thus has high efficiency and excellent product quality.This machine set has such features as scientific and reasonable structure design,smooth and reliable running and convenient operation and maintenance.PE air-cousion film(also called PE bubble film),which is divided into two stypes:ordinary PE air bubble film and composite PE air bubble film is a kind of packing material which has been used at present.It not only has good cushioning effect,shock resistance and heat-sealing performance,but also has been widely used for packing,household wares,post precise instrument,bicycle,furniture,etc.

Feature:

We can supply different model air bubble film machine to produce the air bubble film with two or multi-layer and the with upto 2500mm. Air cushion film products are mainly used in anti-shock package, such as the industries of glass ware, ceramics, electronics, etc. The products are nonpoisonous and harmless, which could be compounded to make composite materials with EPE, aluminium film, conductive film, etc. This unit could continuously form by one step, adopting high pressure polyethylene as raw material, from the raw material input to the automatic rolling product. The thickness of the products needed could be adjusted with no step, and the control is very convenient and flexible. If changed to use different forming roll, could manufacture the air cushion films of all kinds of different form. Presently, it could be used for the forming rolls of all kinds of specifications of 6-18mm, etc, and the width is 600-2500MM. If matching to use three-layers compound air cushion film unit, could produce three-layers air cushion films. If any special requirements, could make to order all kinds of compound air cushion films of compound paper, aluminium film, antistatic film, conductive film, etc. The unit, if compared with international products of the same kind, has the features of simple operation, reasonable structure, convenient maintenance, and long service life of forming roll.

ModelHT-1000HT-1200HT-1500HT-2000
Screw Diameter60mm65mm75mm90mm
Film width1000mm1200mm1500mm2000mm
Max.Output50kg/h65kg/h80kg/h100kg/h
Main motor power15kw15kw18.5kw37kw
Total Power28kw38kw50kw80kw
L/D30:130:130:130:1
Power supply380V/3P/4Line/50Hz
Weight4000kg4200kg4500kg7000kg
Dimension9.0*3.5*2.5m9.5*3.8*2.5m10.0*4.0*2.6m11.5*4.8*4.0m
